When it comes to building or upgrading electric skateboards,scooters,or ebikes,the speed controller is the beating heart of the entire system. Over the past few weeks, we’ve had the chance to put the FLIPSKY 75100 Pro V2.0 through its paces-a robust, aluminum PCB-based speed controller built on the trusted VESC platform. Promising a blend of power, precision, and safety, this model caught our attention with its notable 100A continuous current capacity, extensive sensor support, and a sleek, integrated power button. In this review, we’ll share our hands-on experience and insights into how well it handles speed modulation, heat dissipation, regenerative braking, and overall ride smoothness, helping you decide if it’s the right fit for your next electric ride project.
Our First Impressions and Key Features That Stand Out

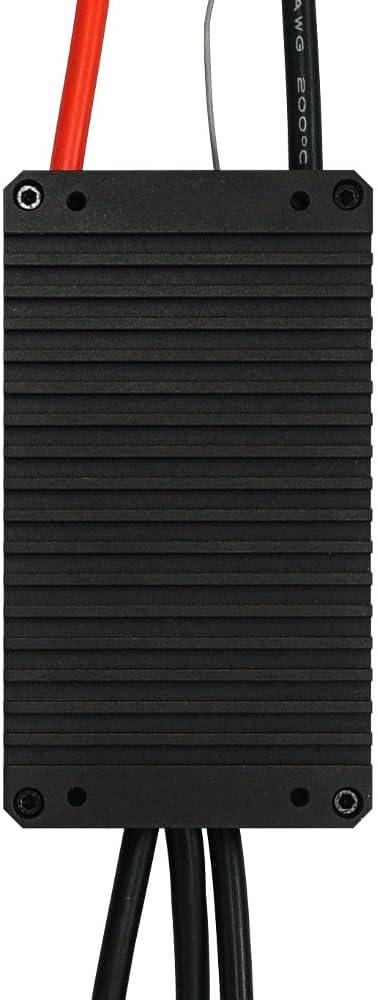

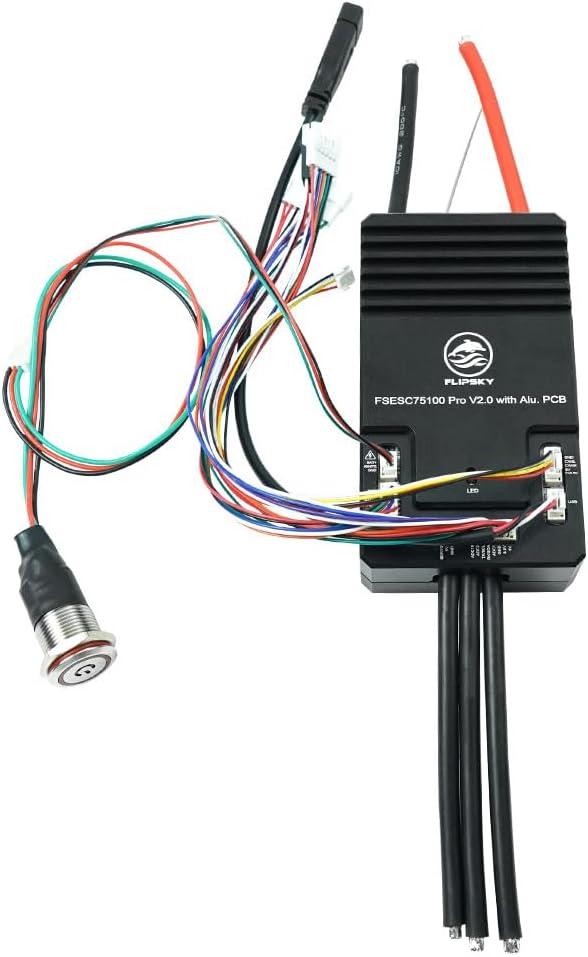

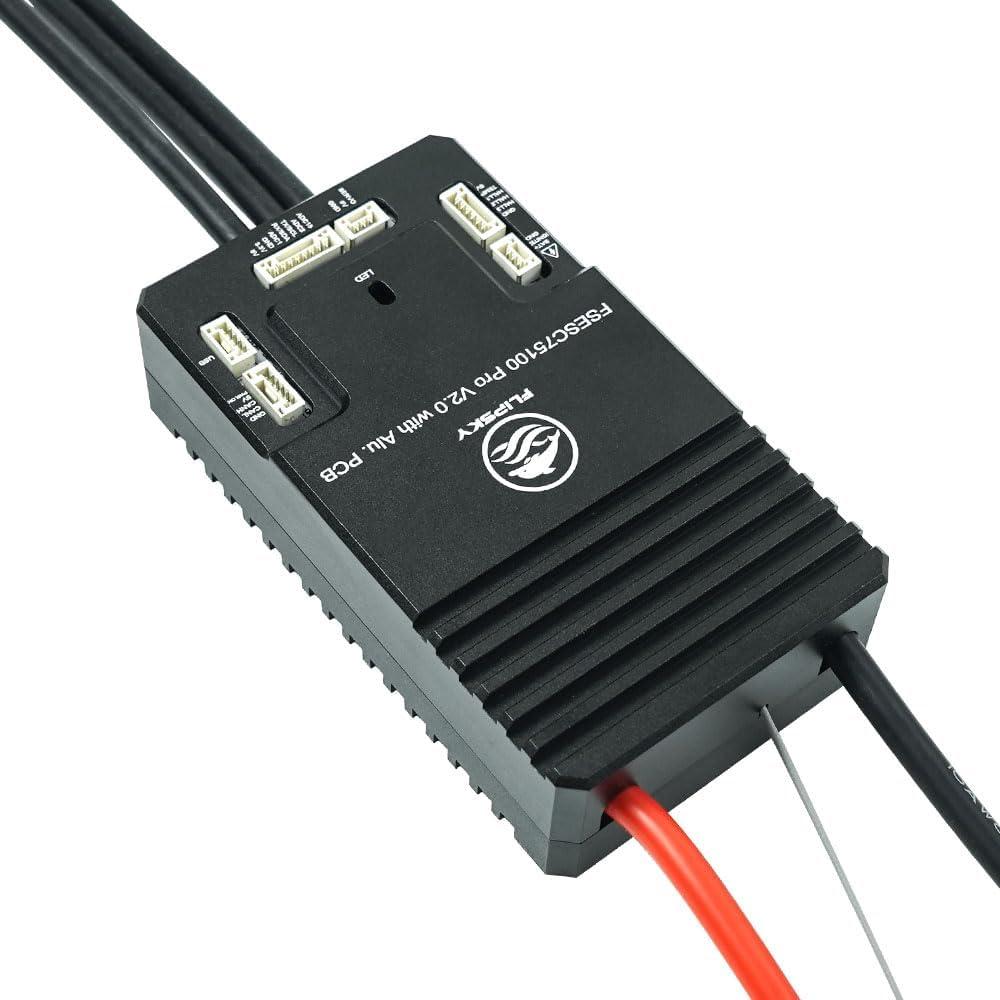

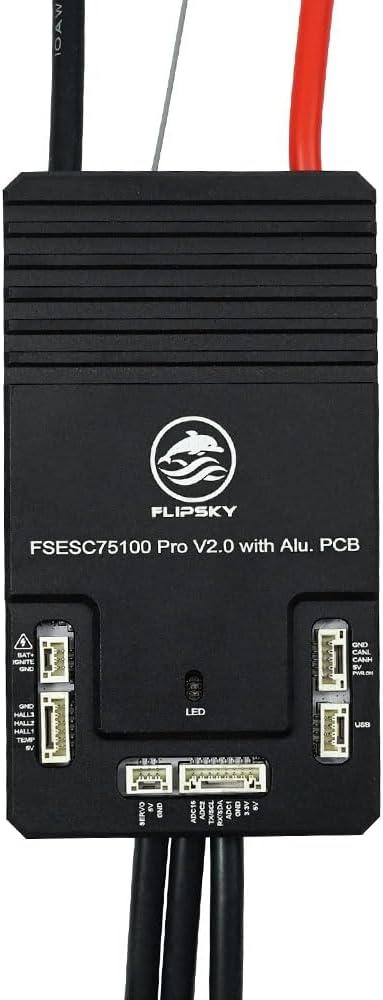

Right out of the box, the sleek aluminum PCB promptly grabs our attention-not only does it look premium, but it also ensures excellent heat dissipation, which is crucial for extending the lifespan of any speed controller. The compact dimensions (103mm x 58mm x 27.7mm) make it a space-efficient choice for a variety of electric rideables, from skateboards to scooters and ebikes. One of the standout physical features is the luminous red power switch button, providing an intuitive and accessible way to toggle the device on and off without hassle.
beyond the hardware, the firmware is just as impressive. Version 6.02 is already installed, and users have the versatility to perform future updates seamlessly. The controller supports a broad voltage range (14-84V, 4-20S batteries) and a continuous current rating of 100A, which is more than adequate for high-performance setups. Notably,it offers regenerative braking capabilities and compatibility with multiple sensors including ABI,HALL,AS5047,and AS5048A,giving riders precise control through both BLDC square wave and FOC sine wave modes.The built-in protections against voltage irregularities, overcurrent, and temperature anomalies make this controller a very reliable and safe choice.
| Feature | Specification |
|---|---|
| Firmware Version | 6.02 (Upgradeable) |
| Voltage Range | 14-84V (4-20S) |
| Continuous Current | 100A |
| Sensors Supported | ABI, HALL, AS5047, AS5048A |
| Firmware Control Modes | BLDC Square Wave, FOC Sine Wave |
| Additional Features | Regenerative Braking, Phase Filter, Power Button |
- Aluminum PCB: Maximizes heat dissipation
- Wide Voltage support: Fits various battery configurations
- Robust Protection: voltage, overcurrent, and thermal safeguards
- Programmable: Tailor performance to your ride

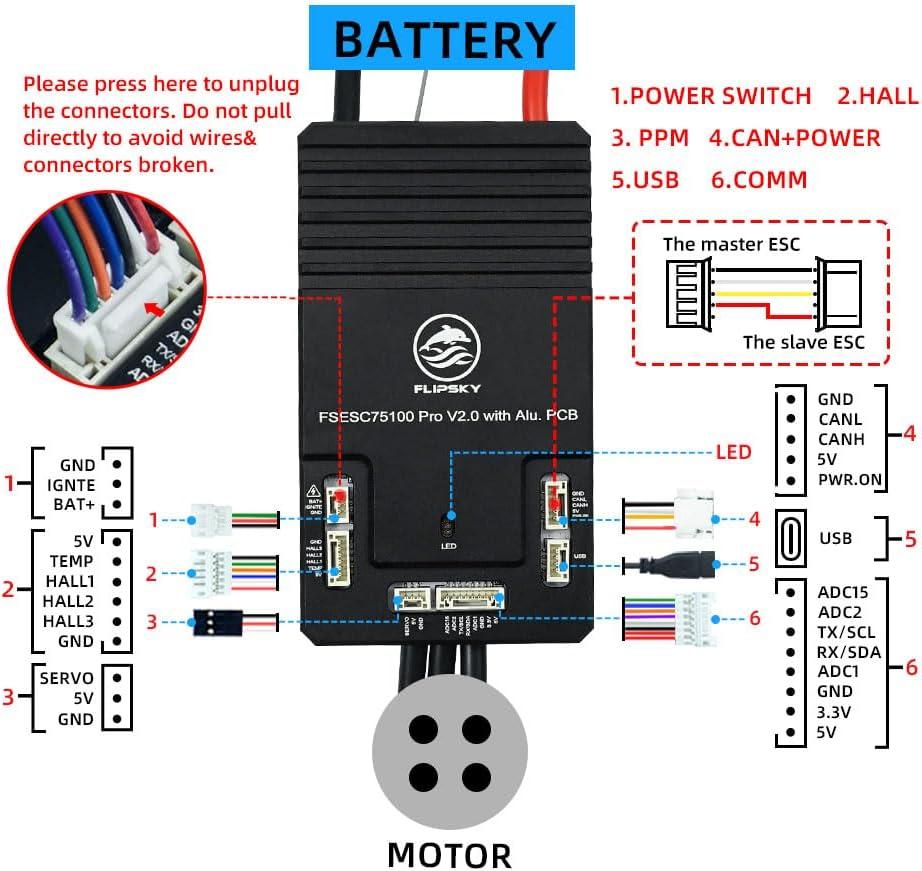

- Multiple Interfaces: USB, CAN, UART for advanced control
Diving Deeper into Performance and Practical Use Insights
When it comes to raw performance, this speed controller impresses with its robust 100A continuous current handling and wide voltage compatibility ranging from 14V to 84V (4 to 20S). This flexibility ensures it can power a variety of electric skateboards,scooters,and ebikes with ease. The inclusion of firmware 6.02 enhances customization options,allowing us to fine-tune settings for optimized acceleration,braking,and regenerative capabilities. The support for both BLDC square wave and FOC sine wave mode control guarantees smooth, quiet motor operation which is a noticeable upgrade in ride quality.
From a practical standpoint,the aluminum PCB notably improves heat dissipation,extending the unit’s lifespan even during extended rides under heavy load. Safety features like adjustable protection for low/high voltage, overcurrent, and temperature anomalies provide peace of mind without compromising performance. The handy red power button adds convenience, letting us switch the controller on and off effortlessly.Below we’ve summarized some key specs and usability highlights for quick reference:
| Feature | Specification |
|---|---|
| Dimensions | 103 x 58 x 27.7 mm |
| Supported Sensors | ABI, HALL, AS5047, AS5048A |
| Control Interface | USB, CAN, UART |
| Programmability | Yes (Firmware Update Supported) |
| Wire Gauge | 10AWG |
| Protection Features | Overcurrent, Voltage, Temperature, MOSFET/ Motor Thermal |
| Special Features | Regenerative Braking, Phase Filter, Power Switch Button |
For anyone looking to elevate their electric ride’s responsiveness and reliability, this controller brings a compelling balance of innovative tech and user-centric design. Check it out here and experience the difference firsthand.
Pros & Cons
Pros & Cons
| Pros | Cons |
|---|---|
| Robust 100A continuous current support for powerful acceleration | Relatively large size might challenge some compact build setups |
| Aluminum PCB ensures excellent heat dissipation and longer lifespan | Firmware updates require some technical know-how – not fully plug & play |
| Built-in red power switch button for easy on/off control | Price point is higher than some entry-level speed controllers |
| Versatile sensor compatibility (ABI, HALL, AS5047, AS5048A) for smooth, customizable control | Installation demands solid familiarity with 10AWG wiring and VESC programming |
| Supports both BLDC square wave and FOC sine wave motor control modes | Heavier weight compared to plastic PCB counterparts |
| Comprehensive safety protections (voltage, current, temperature) for peace of mind | Limited onboard indicators – relies mostly on external software diagnostics |
| Regenerative braking capability improves battery efficiency | USB, CAN, UART ports add capability but may overwhelm beginner users |
We find the FLIPSKY 75100 Pro V2.0 blends power,control,and durability exceptionally well. While it demands some technical confidence to harness its full potential, those willing to dive deeper will appreciate its thoughtful design and robust features.
Q&A
Q&A: FLIPSKY 75100 Pro V2.0 with Aluminum PCB Review
Q1: What makes the FLIPSKY 75100 Pro V2.0 stand out as a speed controller for electric skateboards and scooters?
A1: From our experience,the FLIPSKY 75100 Pro V2.0 combines power, control, and durability in a compact package. Its capability to handle a continuous current of 100A and voltage range from 14V to 84V (4-20S) makes it versatile for various e-mobility setups, while the aluminum PCB helps with heat dissipation to ensure longer lifespan. The included red power switch button adds convenience, and it balances performance and reliability well.
Q2: Can the firmware be updated easily,and does that affect performance?
A2: absolutely. The controller runs on firmware 6.02 and supports firmware updates,which we find valuable. Staying updated means you can benefit from ongoing refinements, bug fixes, and potentially new features. The update process via USB is straightforward, making customization and optimization accessible even for those new to VESC-based controllers.
Q3: How well does it handle different motor sensor types?
A3: The 75100 Pro V2.0 supports a broad range of sensors, including ABI, HALL, AS5047, and AS5048A. We tested it with HALL sensors and found smooth, responsive throttle control. Supporting both BLDC square wave and FOC sine wave modes means it’s adaptable for different motor types and riding styles, giving us precise control and efficient operation.
Q4: Does it provide safety features adequate for high-performance applications?
A4: Yes, safety is a strong aspect here. The unit offers adjustable protections such as low voltage, high voltage, overcurrent, abnormal temperature, and specific protections for mosfets and motor temperatures. During our testing, these features gave us peace of mind, especially during aggressive riding or uphill climbs.
Q5: How is the heat management on this controller?
A5: Thanks to the aluminum PCB design, heat dissipation is notably improved over many other controllers we’ve used.This helps prevent thermal throttling and potential damage, allowing sustained high current output without excessive temperature rise. This means better reliability and longer life for your speed controller.
Q6: is the regenerative braking effective with this ESC?
A6: We were pleased with the regenerative braking capacity. It smoothly recaptures energy,giving better battery efficiency and control during descents or slowing down. The regenerative braking can be fine-tuned via programming to match your riding preferences.
Q7: What about wiring and connectivity options?
A7: The 10AWG wire size is robust enough for demanding currents, and the controller features multiple control interface ports like USB, CAN, and UART-providing flexibility for programming and integration. Input support includes PPM, ADC, NRF, and UART, which makes it compatible with various remotes and sensors.
Q8: Would you recommend this ESC for beginners and experienced riders alike?
A8: We think so. While the FLIPSKY 75100 Pro V2.0 offers advanced features suited for seasoned riders wanting to push their boards or scooters to the edge, its programmability and comprehensive protections also make it accessible and safe enough for beginners willing to learn and grow. Plus,the power button adds a layer of convenience for casual use.
We hope this Q&A gives you a clear picture of what to expect from the FLIPSKY 75100 Pro V2.0. if you have more questions or want us to dive deeper into specific aspects,just let us know!
Unlock Your Potential
As we wrap up our review of the FLIPSKY 75100 Pro V2.0, it’s clear that this speed controller masterfully combines power, precision, and durability in one compact package. With its advanced firmware,aluminum PCB for superior heat dissipation,and robust protection features,it’s built to handle the demands of electric skateboards,scooters,and ebikes alike. Whether you’re seeking smooth control or regenerative braking capabilities, this controller offers the versatility and reliability that riders appreciate.
If you’re ready to upgrade your ride with a dependable and programmable speed controller that won’t let you down, the FLIPSKY 75100 Pro V2.0 is definitely worth considering.
Explore it further and grab yours today: Check out the FLIPSKY 75100 Pro V2.0 on amazon.
